ArtFox
http://www.artfox.net

Model:

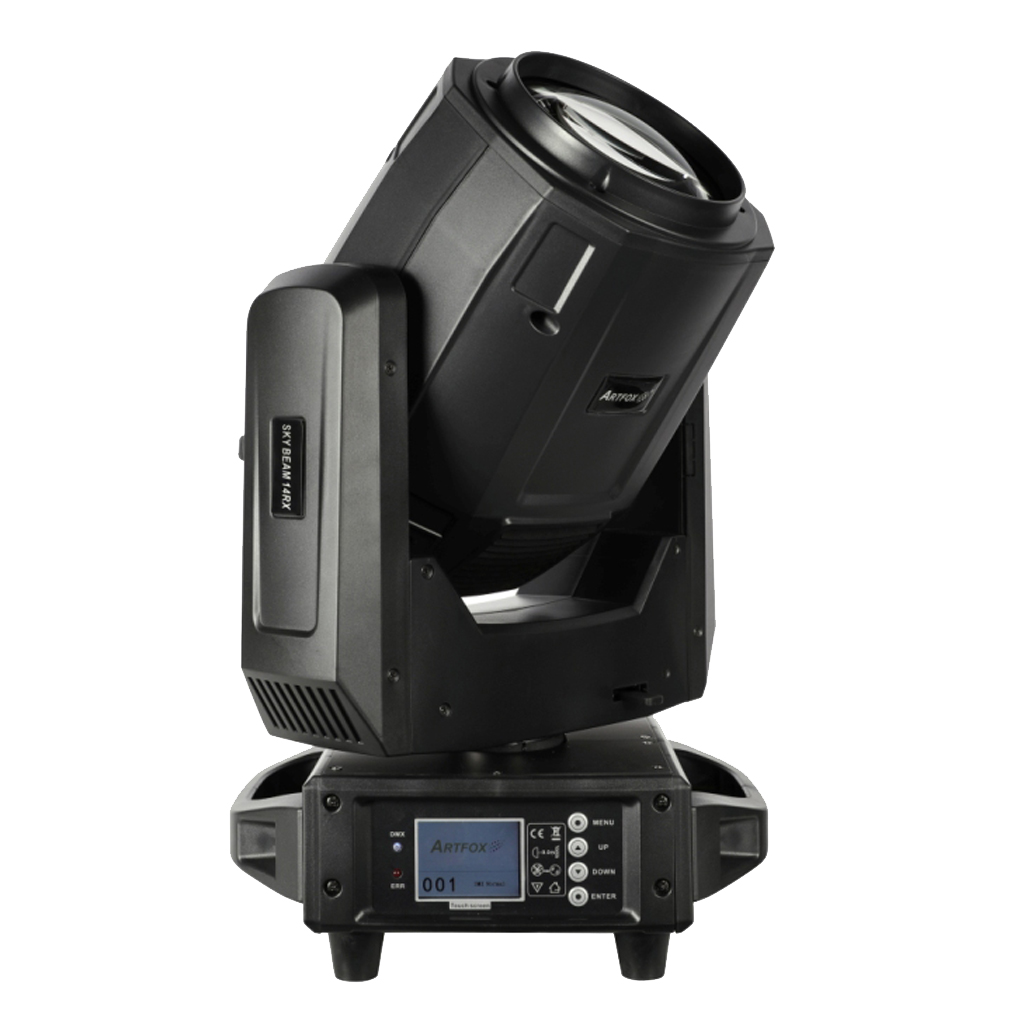

Sky Beam 14RX

Type:

MOVING HEAD

Export DMX Control Profile

Mode

Channel

DMX From

DMX To

Default

No. Fnc

18Ch Mode
18 Channels
18
- 1 PAN 127 1
  - Pan 0 255
- 2 PAN FINE 127 1
  - Pan Fine 0 255
- 3 TILT 127 1
  - Tilt 0 255
- 4 TILT FINE 127 1
  - Tilt Fine 0 255
- 5 P/T SPEED 0 1
  - F > S 0 255
- 6 DIMMER 0 1
  - Dimmer 0 255
- 7 STROBE 106 7
  - Shutter Closed 0 3
  - Strobe S > F 4 103
  - Shutter Open 104 107
  - Strobe S > F 108 207
  - Shutter Open 208 212
  - Strobe Random 213 251
  - Shutter Open 252 255
- 8 FROST 0 2
  - Frost Open 0 127
  - Full Frost 128 255
- 9 COLOR WHEEL 0 32
  - Open 0 4
  - Open + Color 1 5 9
  - Color 1 10 14
  - Color 1 + Color 2 15 19
  - Color 2 20 24
  - Color 2 + Color 3 25 29
  - Color 3 30 34
  - Color 3 + Color 4 35 39
  - Color 4 40 44
  - Color 4 + Color 5 45 49
  - Color 5 50 54
  - Color 5 + Color 6 55 59
  - Color 6 60 64
  - Color 6 + Color 7 65 69
  - Color 7 70 74
  - Color 7 + Color 8 75 79
  - Color 8 80 84
  - Color 8 + Color 9 85 89
  - Color 9 90 94
  - Color 9 + Color 10 95 99
  - Color 10 100 104
  - Color 10 + Color 11 105 109
  - Color 11 110 114
  - Color 11 + Color 12 115 119
  - Color 12 120 124
  - Color 12 + Color 13 125 129
  - Color 13 130 134
  - Color 13 + Color 14 135 139
  - Color 14 140 144
  - Color 14 + White 145 149
  - F > S 150 200
  - S > F 201 255
- 10 STATIC GOBO 0 30
  - Gobo Open 0 4
  - Gobo 1 5 9
  - Gobo 2 10 14
  - Gobo 3 15 19
  - Gobo 4 20 24
  - Gobo 5 25 29
  - Gobo 6 30 34
  - Gobo 7 35 39
  - Gobo 8 40 44
  - Gobo 9 45 49
  - Gobo 10 50 54
  - Gobo 11 55 59
  - Gobo 12 60 64
  - Gobo 13 65 69
  - F > S 70 128
  - Stop 129 131
  - S > F 132 190
  - Gobo 1 Shake 191 195
  - Gobo 2 Shake 196 200
  - Gobo 3 Shake 201 205
  - Gobo 4 Shake 206 210
  - Gobo 5 Shake 211 215
  - Gobo 6 Shake 216 220
  - Gobo 7 Shake 221 225
  - Gobo 8 Shake 226 230
  - Gobo 9 Shake 231 235
  - Gobo 10 Shake 236 240
  - Gobo 11 Shake 241 245
  - Gobo 12 Shake 246 250
  - Gobo 13 Shake 251 255
- 11 7 COLORFUL 0 2
  - No Function 0 127
  - Insert 7 Colorful 128 255
- 12 PRISM 1 0 4
  - No Function 0 63
  - 8 Facet Prism 64 127
  - 6 Facet Prism 128 191
  - 6+12 Facet Prism 192 255
- 13 PRISM 1 IDX/ROT 0 4
  - Indexing 0 127
  - F > S 128 187
  - Stop 188 195
  - Rotate CCW 196 255
- 14 PRISM 2 0 4
  - No Function 0 63
  - 16 Facet Prism 64 127
  - 6 Facet Prism 128 191
  - 8+16+24 Facet Prism 192 255
- 15 PRISM 2 IDX/ROT 0 4
  - Indexing 0 127
  - F > S 128 187
  - Stop 188 195
  - Rotate CCW 196 255
- 16 FOCUS 127 1
  - Focus 0 255
- 17 LAMP 0 3
  - No Function 0 99
  - Lamp Off 100 105
  - Lamp On 200 205
- 18 RESET 0 3
  - Reset 210 215
  - Lamp Off 220 235
  - Lamp On 240 255
